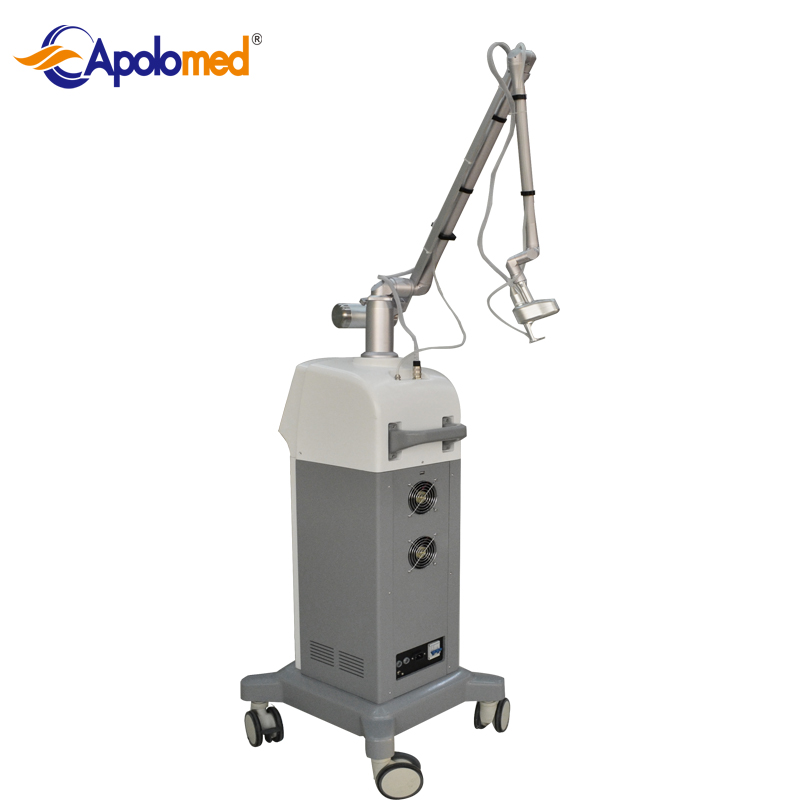

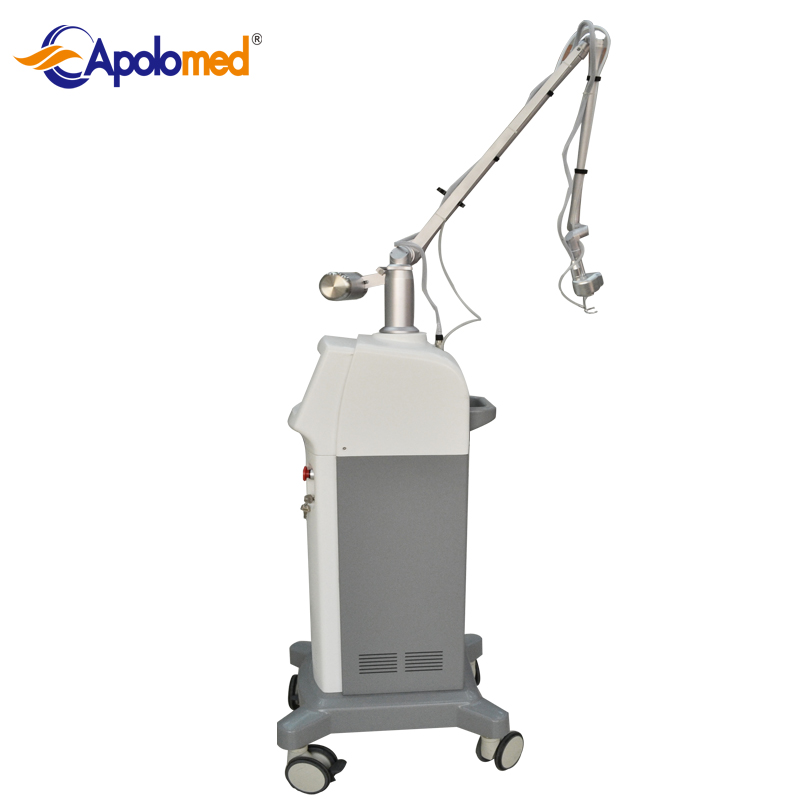

Medical co2 fractional laser machine
Products Description
Working theory
Principle of CO2 fractional laser
CO2 laser system generate a 10,600nm wavelength, which is absorbed by water in the tissue. The laser energy heats up the water until it reaches a boiling point causing the evaporation of the affected tissue. Some heat is absorbed by tissue adjacent to the ablated target area, causing tissue coagulation which induces hemostasis (the essation of bleeding) as well as thermal stimulation.
Specification
|
Model#
|
HS-411
|
|||
|
Wavelength
|
10600nm CO2 laser
|
|||
|
Laser power
|
1~35W
|
|||
|
Beam delivery
|
Articulated arm
|
|||
|
Function mode: Fractional/ Vaginal care
|
||||
|
Energy
|
1~300mJ/dot
|
|||
|
Repetition rate
|
1HZ ~ 1000HZ
|
|||
|
Pulse width
|
0.1~50ms/dot
|
|||
|
Density
|
25~3025PPA/cm2 (12level)
|
|||
|
Scan area
|
20x20mm
|
|||
|

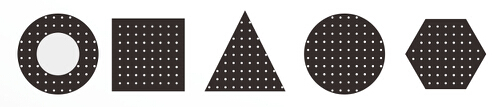

Shape
|
Square, Hexagon, Triangularm circular, freehand
|
|||
|
Pattern
|
Array, Random
|
|||
|
Function mode: Normal
|
||||
|
Operation mode
|
CW/ Single Pulse/ Pulse/ S.Pulse/ U.Pulse
|
|||
|
Pulse repetition rate
|
S.Pulse: 2~500HZ U.Pulse: 2~1000HZ
|
|||
|
Pulse width
|
Pulse 5~500ms
|
Single pulse 1~500ms
|
S.Pulse 1~4ms
|
U.Pulse 100~900us
|
|
Aiming beam
|
Diode 655nm (Red), adjustable brightness
|
|||
|
Operation interface
|
8" true color touch screen
|
|||
|
Cooling system
|
Advanced air cooling system
|
|||
|
Power supply
|
AC100V or 240V, 50/60HZ
|
|||
|
Dimension
|
50*45*113cm (L*W*H)
|
|||
|
Weight
|
55Kgs
|
|||
Advantage

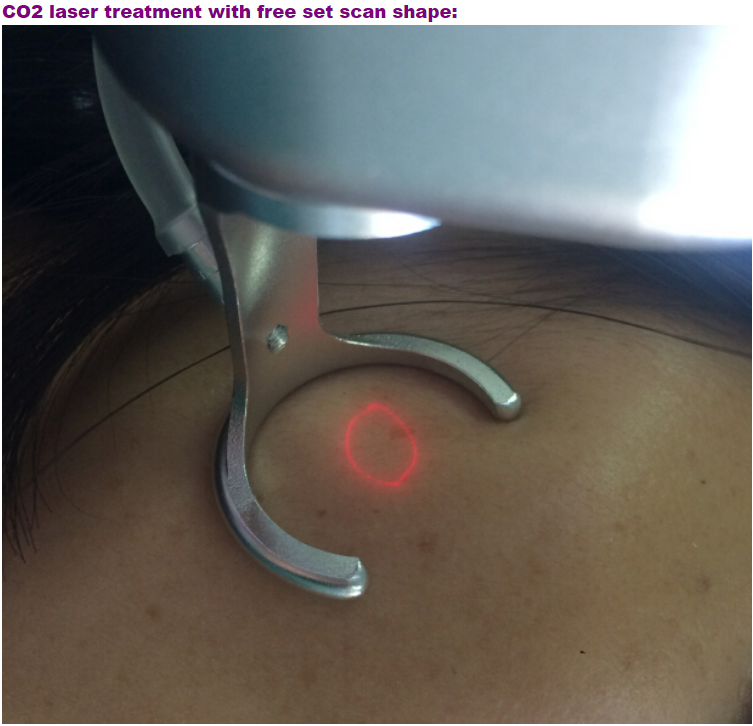

1. Easy Drawing regular & irregular shapes for different area treatment
2. Ultra-Short Pulse Duration make sure safety and comfortable treatment
3. Various indications with one machine
4. Adjustable spot density to meet versatile treatment
5. Easy setup and quick treatments
6. RF ID / IC management control design for providing different business operations models ( ie. member card, Rental.... )
7. Apply Android operation system, is capable for more functions of saving customer database, developing applications and customize interface.
2. Ultra-Short Pulse Duration make sure safety and comfortable treatment
3. Various indications with one machine
4. Adjustable spot density to meet versatile treatment
5. Easy setup and quick treatments
6. RF ID / IC management control design for providing different business operations models ( ie. member card, Rental.... )
7. Apply Android operation system, is capable for more functions of saving customer database, developing applications and customize interface.
Treatment
Application:
Application of CO2 laser:
* Skin resurfacing (Rough skin, coarse pores, dark skin, light damage…)
* Wrinkles (Crow's feet, head lines, Sichuan characters, Decree lines)
* Pigmented nevus, epidermal pigmentation (freckles, etc.), epidermis (all kinds of warts) cutting
* Scar Repair (acne scar, hypertrophic scar, burn scar, sunken scar, etc.)
* Other applications (syringoma, condyloma, seborrheic, etc.)
* Viginal care (Vaginal wall tightening, collagen remodeling, thicker and more resilient, labium whitening)
* Wrinkles (Crow's feet, head lines, Sichuan characters, Decree lines)
* Pigmented nevus, epidermal pigmentation (freckles, etc.), epidermis (all kinds of warts) cutting
* Scar Repair (acne scar, hypertrophic scar, burn scar, sunken scar, etc.)
* Other applications (syringoma, condyloma, seborrheic, etc.)
* Viginal care (Vaginal wall tightening, collagen remodeling, thicker and more resilient, labium whitening)

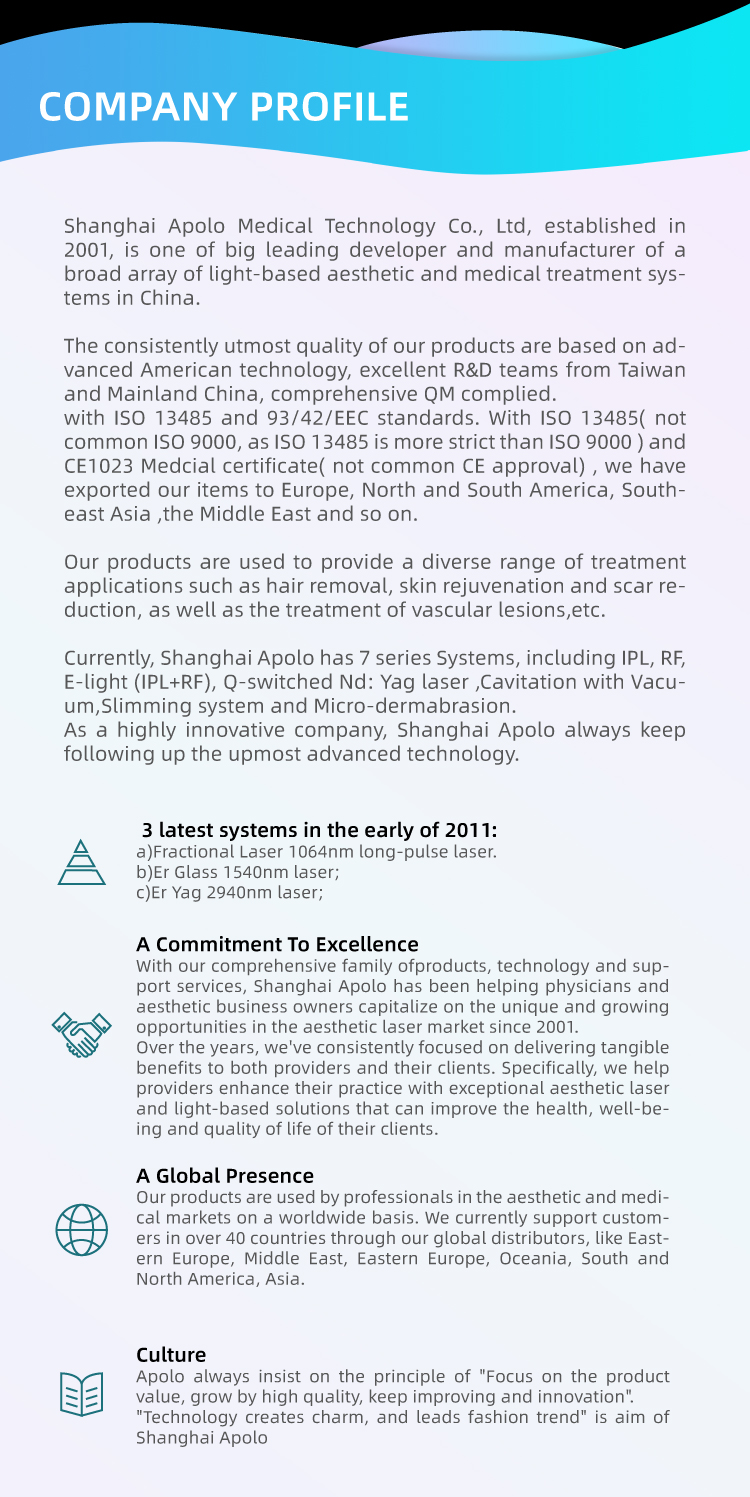

Company Profile

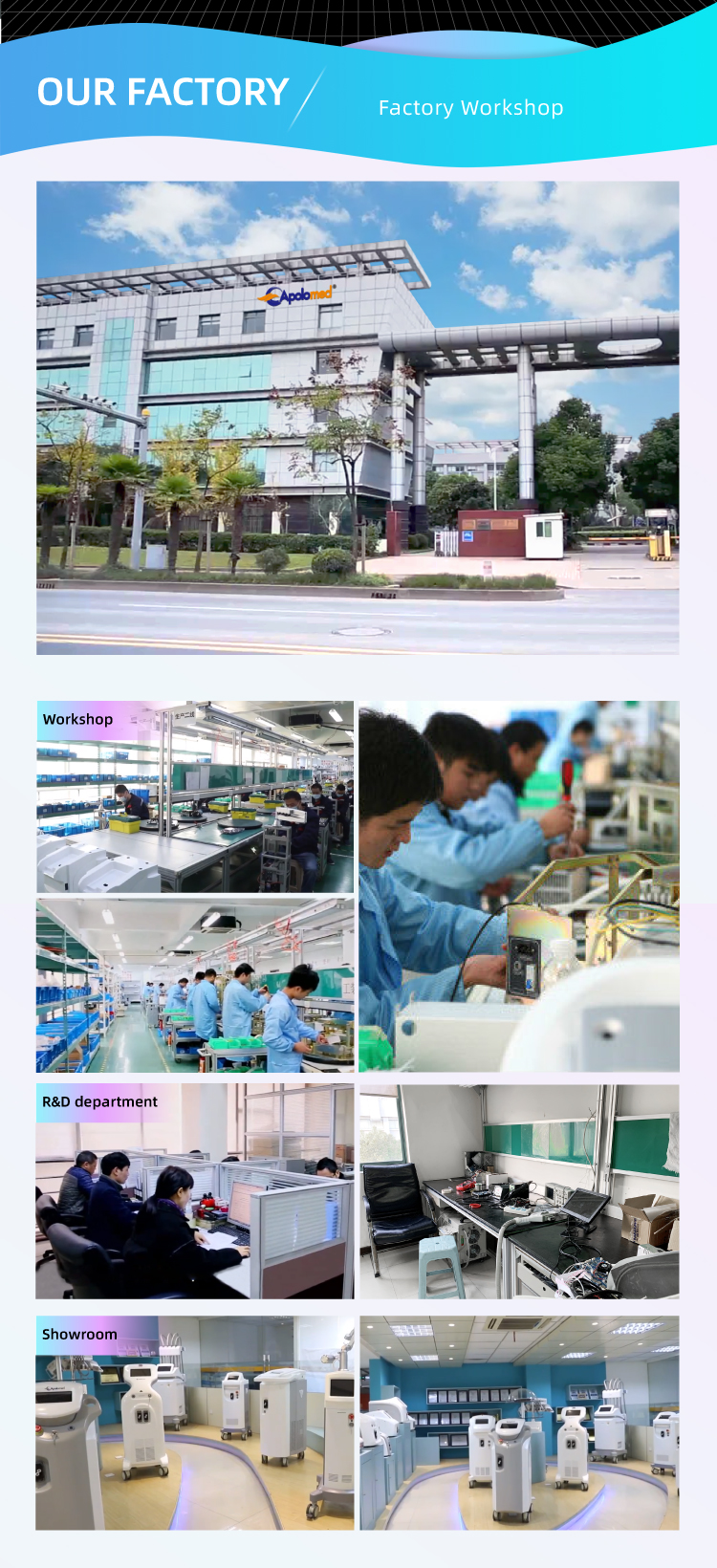

Factory Flow
