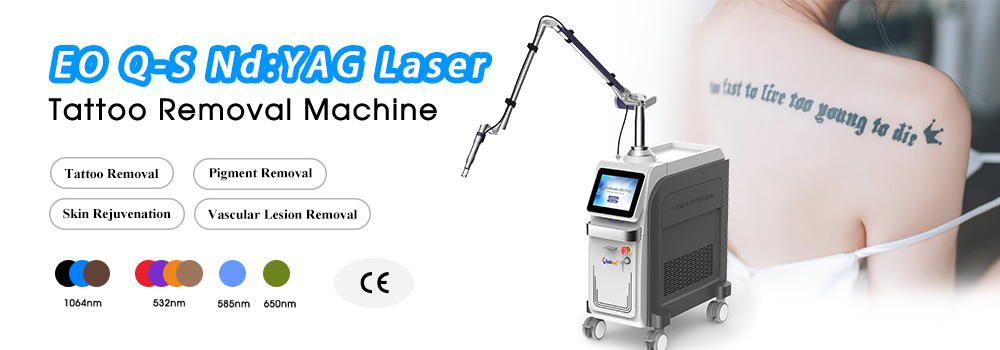

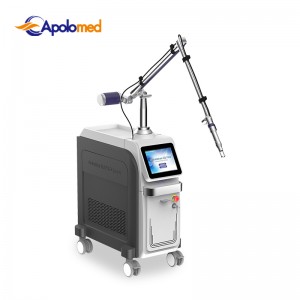

EO Q-Switch ND YAG Laser HS-290A
Specification Of HS-290A
| Laser type | EO Q-switch Nd:YAG laser | |||
| Wavelength | 1064/532,585/650nm(optional) | |||
| Operate mode | Q-switched,SPT,Long pulse hair removal | |||
| Beam profile | Flat-top mode | |||
| Pulse width | ≤6ns(q-switched model),300us(SPT mode) 5-30ms(Hair removal mode) |
|||
| Q-switched(1064nm) | Q-switched(532nm) | SPT mode(1064nm) | Long pulse hair removal(1064nm) | |
| Pulse energy | Max.1200mJ | Max.600mJ | Max.3000mJ | Max.60J/cm² |
| Repetition rate | Max.10Hz | Max.8Hz | Max.10Hz | Max.1.5Hz |
| Spot size | 2-10mm | 2-10mm | 2-10mm | 6-18mm |
| Energy calibration | Exterbal&self-restoration | |||
| Operating mode | 1./2./3.pulse support | |||
| Opertical delivery | Articulated arm | |||
| Aiming beam | Diode 650nm(Red),brightness adjustable | |||
| Cooling system | Adcanced Air&Water cooling system TEC cooling system(optional) |
|||
| Power supply | AC 100-240V,50/60Hz | |||
| Dimension | 78*43*88cm(L*W*H) | |||
| Weight | 72Kgs | |||
Application Of HS-290A
● Tattoo removal
● Skin Rejuvenation
● Vascular lession removal
● Epidermal and dermal pigmented lesions: Nevus of Ota, Sun damage, Melasma
● Skin resurfacing: Wrinkle reduction, Acne scar reduction, Skin toning
Advantage Of HS-290A
Flat-top beam profile ensure the energy is distributed evenly;
The 1064nm Nd:YAG is the ideal wavelength for long-lasting hair removal on darker&tanned skin;
Professional mode&treatment mode for greatly improve treatment condition and treatment range;
IC management control design.ARM-A9 CPU,Android O/S 4.1,HD screen.
