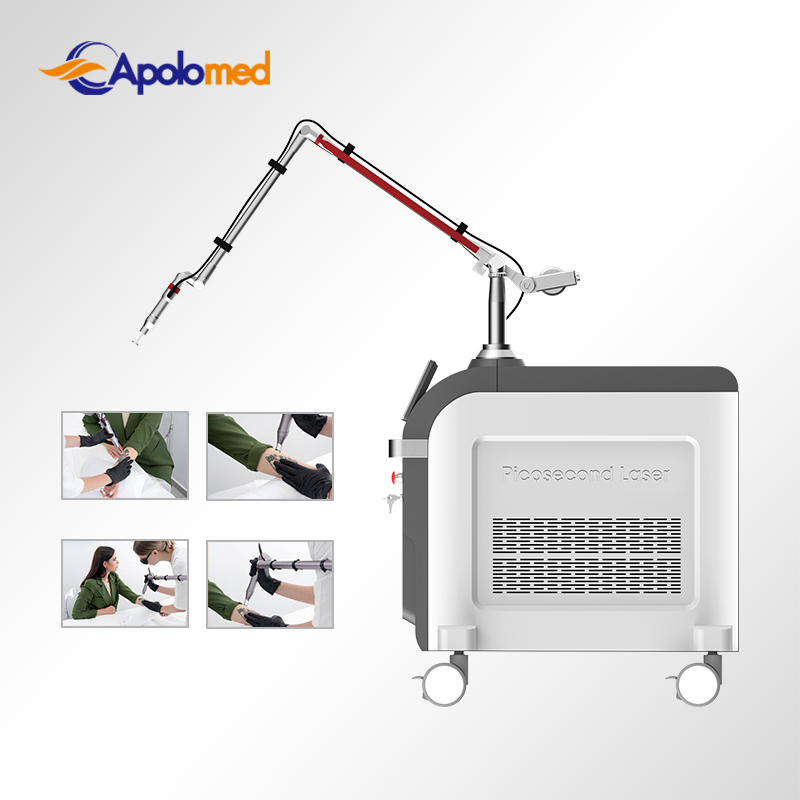

Q Switch Nd Yag Laser Tattoo Removal Machine
Specification Of HS-298N
| Wavelength | 1064/532nm |
| Pulse width | ≤6ns(q-switched model),300us(SPT mode) |
| 300ps or 450ps | |
| Pulse energy | 500mJ:1064nm,250mJ:532nm |
| Spot size | 2-10mm |
| Repetition rate | 1-10Hz |
| Opertical delivery | Articulated arm |
| Operate interface | 11.6" True color touch screen |
| Aiming beam | Diode 650nm(Red),brightness adjustable |
| Cooling system | Adcanced Air&Water cooling system |
| TEC cooling system(optional) | |
| Power supply | AC 100-240V,50/60Hz |
| Dimension | 96*48*95cm(L*W*H) |
| Weight | 109 Kgs |
Application Of HS-298N
● Tattoo(multi-coloured&black)
● Age Spot
● Cafe Au Lait Spot
● Freckles
● Melasma
● Post Inflammatory Hyper-pigmentation
● Nevus of OTA and Ito
● Skin Rejuvenation
● Skin Resurfacing
● Nevus spillus
Advantage Of HS-298N
Dualwave(1064/532nm) system with no fractional and non-fractiona.
Two pulse mode of picosecond&nanosecond in one unit with wide range of medical&surgical applications.
High peak power and ultra shor pulse with Min.discomfort and faster recovery time.
Stimulate collagent to regenerate and repair scars,improve fine lines.
Spot size adjustable from 2-10mm the energy density automatic conversion.
Imported 7 jointed,360°adjustable of articulated imported arm adjustable for easy operation.
RF ID management control design for providing different business operation modes.
ARM-A9 CPU,Android O/S.
1064/532nm picosecond handpiece
Korea imported articulated arm

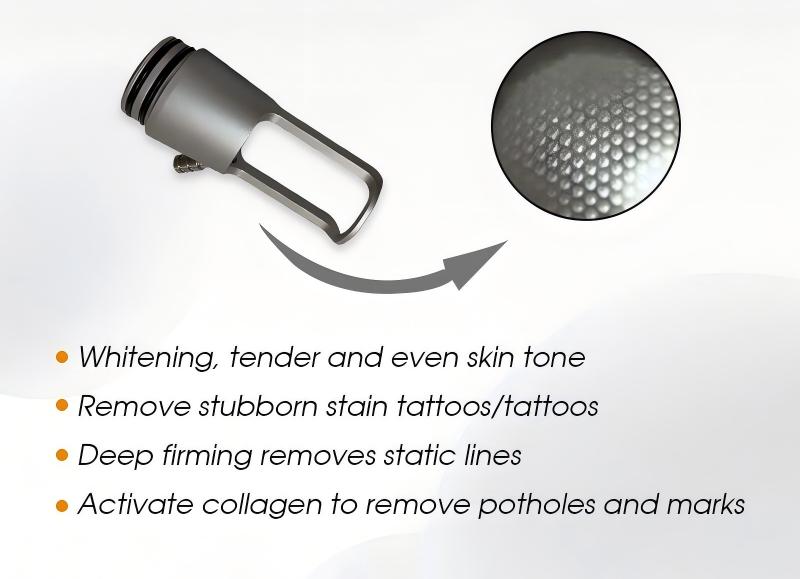

Fractional Lens array(10X10mm)
Fractional Lens Array which creates pixe-sized perforations in 7x7/10x10 non-ablative pattern, allowing physicians to deliver higher, evenly distributed energy across the fractional array. At the same time, it can implement non sequential scanning to complete the ilumination ofall light in a jumping manner. This increases the interval time between two adjacent light points, ensuring sufficientheat dissipation for the skin. These micro-injury sites trigger a wound healing process that strengthens collagen and stimulates neocollagenesis, completely rejuvenating the target tssue.
Array lens 20X(optional)
Skin resurfacing
