Renewable Design for Infrared Pdt Led Beauty Equipment - Q switch nd yag laser equipment – Apolo
Renewable Design for Infrared Pdt Led Beauty Equipment - Q switch nd yag laser equipment – Apolo Detail:
Qswitched and spt mode tattoo removal laser equipment
- Factory direct sale HS-290 EO Q Switch pulsed Nd:YAG laser
- Pulse width < 6ns
- Repetition rate max.10HZ
- Luxry 9.7" true color touch screen with multi-languages available
- IC card and USB function supported
Apolomed EO Q Switch Nd:YAG laser system, with the advanced pulsed Nd YAG laser technology, could make the skin selectively absorbing certain wavelength of laser and achevie curative effect. The pulsed nd yag laser HS-290 is widely used to:
- Melasma
- Tattoo removal
- Pigment removal
- Yag laser skin rejuvenation
Specification of Good quality EO q switched 1064 532 nd yag laser machine tattoo removal equipment
| Laser Type | EO Q-Switch Nd:YAG laser |
| Wavelength | 1064/532nm |
| Operate mode | Q-Switched mode & SPT mode |
| Beam profile | Flat-top mode |
| Pulse width | ≤ 6ns (Q-Switched mode) |
| 300 us (SPT mode) | |
| Pulse energy | Q-Switched 1064 mode: Max.2000mJ |
| Q-Switched 532 mode: Max.800mJ | |
| SPT mode (1064nm): Max.2800mJ | |
| Energy calibration | External & self-restoration |
| Spot size | 2~10mm |
| Repetition rate | Max.10HZ |
| Optical delivery | Articulated arm |
| Operate interface | 9.7" true color touch screen |
| Aiming beam | Diode 655nm(red), brightness adjustable |
| Cooling system | Advanced air & water cooling system |
| Power supply | AC100V or 230V, 50/60HZ |
| Dimension | 82*30*88cm (L*W*H) |
| Wright | 80KGs |
Good quality EO q switched 1064 532 nd yag laser machine tattoo removal equipment:
1. Max.2000mJ EO Q-Switch mode for yag laser tattoo removal treatment
2. Max.2800mJ free running mode for yag laser skin rejuvenation
3. Pulse width < 6ns
4. Repetition rate max.10HZ
5. Luxry 9.7" true color touch screen with multi-languages available
6. IC card and USB function supported
7. Copper radiator cooling system and water filter to protect the system
8. Modulariged design with metal chassis. Easy for maintenance.
9. Operations Safety: water flow and water level control system keeps laser machine in safe condition.
Spot size from 1~10mm adjustable:

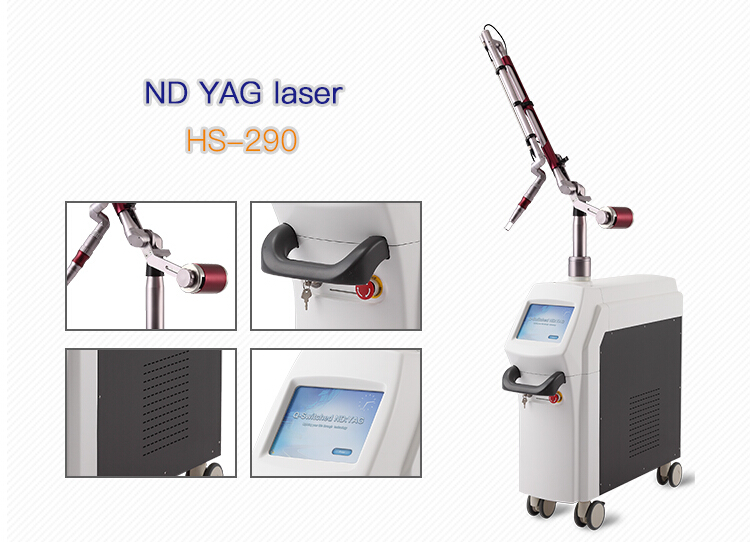

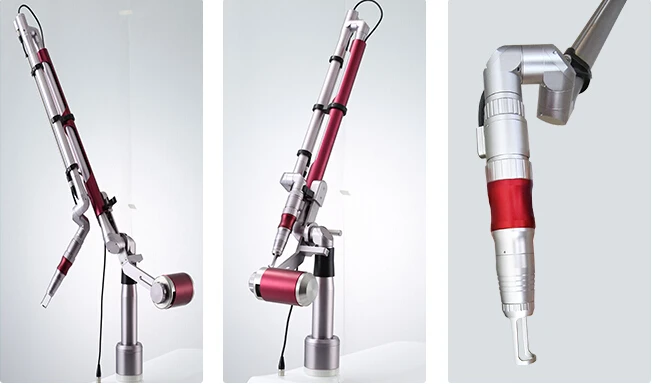

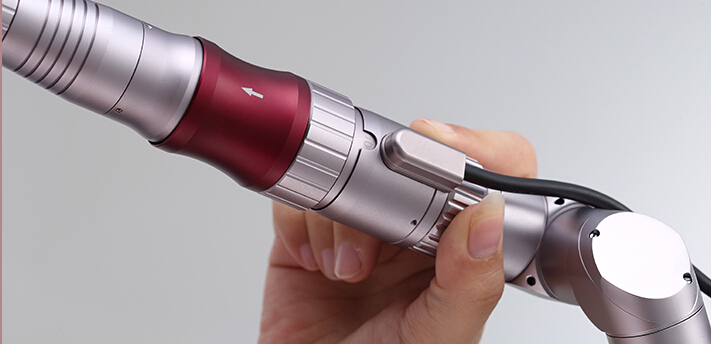

Product detail pictures:
