Stationary fractional 10600nm co2 laser for surgical scars and skin rejuvenation and Vaginal Care
3-in-1 CO2 laser, making it ideal choice for both aesthetic field, medical field and also surgical field.
3-IN-1 CO2 FRACTIONAL LASER

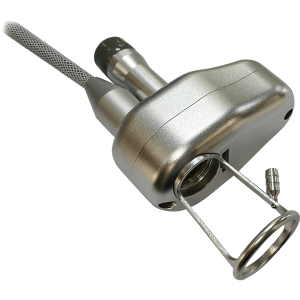

It combines 3 different kind handles in one single unit: Fractional laser handle, Normal cutting handle(50mm,100mm), Vaginal care handle, making it ideal for both aesthetic field, medical field and also surgical field.
DIFFERENT SHAPES FOR TREATMENT
Total 5 different shapes for selection with each array can be adjusted in both X and Y axes independently to produce a virtually infinite range of shapes and sizes to choose from.
SCANNING SETS YOU FREE
35W/55W/100W system for selection
Up to 300mJ/ microbeam
Max. 20 x 20mm scan area
25 ~ 3025 microbeams/cm2 adjustable for accurate treatment
UNIQUE RANDOM OPERATE MODE
Laser micro-beam in alternative direction, it allows the treated micro zone to cool and delivers multiple clinical advantages with less pain and downtime, this help to avoid blistering, swelling and erythema. Most important, it will decrease risk of post-inflammatory pigmentation and other side effects that may occur after laser treatments.
ULTIMATE FLEXIBILITY WITH HAND DRAW FUNCTION
A9 Android operate system, which allows hand draw any shape you wish and translate to the target, making precise and effective treatment.
Wavelength |
10600nm |
|||
Laser medium |
RF sealed-off CO2 laser |
|||
Laser power |
55W/35W |
|||
Function mode: Fractional/vaginal care |
||||
Energy |
1-300mJ/dot |
|||
Pulse width |
0.1-50ms/dot |
|||
Density |
25-3025PPA/cm2 |
|||
Scan area |
20x20mm |
|||
Shape |
Square, hexagon, triangle, circular, freehand |
|||
Pattern |
Array, Random |
|||
Function mode: Normal |
||||
Operating mode |
CW/Single pulse/Pulse/S.Pulse/U.Pulse |
|||
Pulse width |
Pulse |
Single Pulse |
S.Pulse |
U.Pulse |
5-500ms |
1-500ms |
1-4ms |
0.1-0.9ms |
|
Operate interface |
8’’ true color touch screen |
|||
Dimension |
50*45*113cm (L*W*H) |
|||
Weight |
55Kgs |
APPLICATIONS
Pigmented nevus, epidermal pigmentation, epidermis cutting
Vaginal care (vaginal wall tightening, collagen remodeling, thicker and more resilient, labium whitening)
